Custom Dies

For generations, Vogel has used our experience to design and build custom tools for specialized tubular part fabrication requirements. Because each design is unique, it is not possible to list every type of tool we might be able to provide. A few examples are at the left and more described below.  The best way for us to help you is to use our Request for Quote form to send a print of the tubular part you need to make.

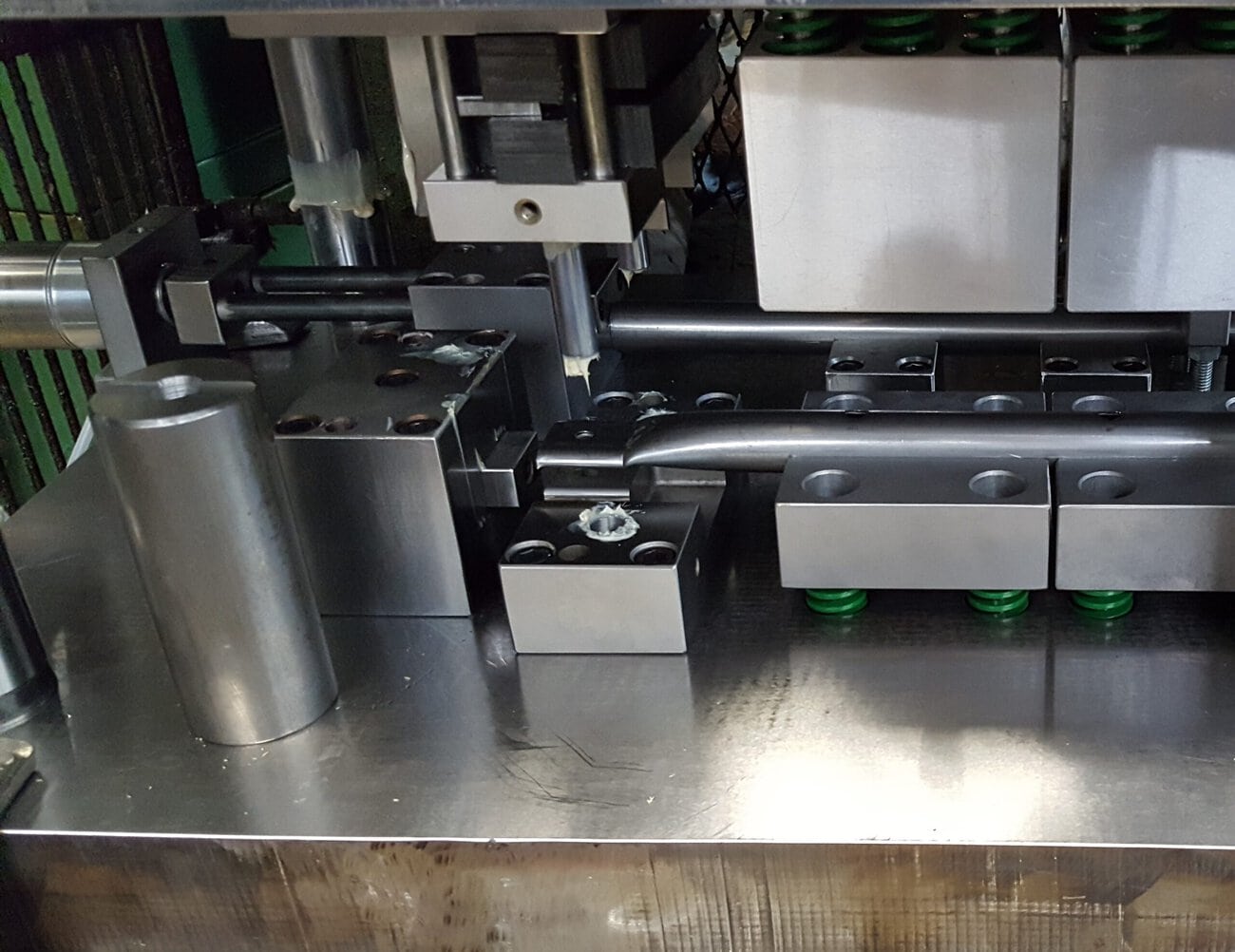

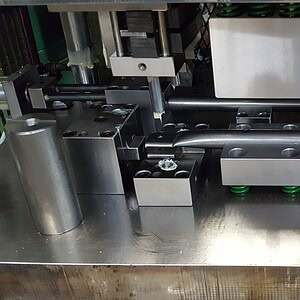

Examples of Vogel Custom Dies for Tubing

  • Piercing clean holes or slots through tubing
  • Flattening tubing to bottom wall
  • Flattening tubing to a tube’s centerline
  • Flattening & trimming a tube’s end – normally in one stroke!
  • Flatten & trimming a tube’s end and pierce a hole in the flattened area – normally in one stroke!
  • Side notching tubing to permit piercing an oversize opening



Custom Dies for Other Materials

  • Flat stock, bar stock & rod shearing
  • Flat stock parting & piercing
  • Flat stock slotting & blanking dies
  • Hex staking dies
  • Extrusion shearing
  • Extrusion piercing & slotting

Please note that we currently do not offer tools for tube bending.
Automation:  Many of our customers do add different types of feeds and automation options, but this is subject to their own preferences, existing equipment and production needs. For these reasons, we no longer offer automation options for our tools.

Categories: ,

Order Custom Dies

Use this form to place an order for a previously quoted tool. Enter the quote # and amount as displayed on your quote.
  • $0.00

Custom Dies

For generations, Vogel has used our experience to design and build custom tools for specialized tubular part fabrication requirements. Because each design is unique, it is not possible to list every type of tool we might be able to provide. A few examples are at the left and more described below.  The best way for us to help you is to use our Request for Quote form to send a print of the tubular part you need to make.

Examples of Vogel Custom Dies for Tubing

  • Piercing clean holes or slots through tubing
  • Flattening tubing to bottom wall
  • Flattening tubing to a tube’s centerline
  • Flattening & trimming a tube’s end – normally in one stroke!
  • Flatten & trimming a tube’s end and pierce a hole in the flattened area – normally in one stroke!
  • Side notching tubing to permit piercing an oversize opening



Custom Dies for Other Materials

  • Flat stock, bar stock & rod shearing
  • Flat stock parting & piercing
  • Flat stock slotting & blanking dies
  • Hex staking dies
  • Extrusion shearing
  • Extrusion piercing & slotting

Please note that we currently do not offer tools for tube bending.
Automation:  Many of our customers do add different types of feeds and automation options, but this is subject to their own preferences, existing equipment and production needs. For these reasons, we no longer offer automation options for our tools.

Description

Custom Dies

For generations, Vogel has used our experience to design and build custom tools for specialized tubular part fabrication requirements. Because each design is unique, it is not possible to list every type of tool we might be able to provide. A few examples are at the left and more described below.  The best way for us to help you is to use our Request for Quote form to send a print of the tubular part you need to make.

Examples of Vogel Custom Dies for Tubing

  • Piercing clean holes or slots through tubing
  • Flattening tubing to bottom wall
  • Flattening tubing to a tube’s centerline
  • Flattening & trimming a tube’s end – normally in one stroke!
  • Flatten & trimming a tube’s end and pierce a hole in the flattened area – normally in one stroke!
  • Side notching tubing to permit piercing an oversize opening



Custom Dies for Other Materials

  • Flat stock, bar stock & rod shearing
  • Flat stock parting & piercing
  • Flat stock slotting & blanking dies
  • Hex staking dies
  • Extrusion shearing
  • Extrusion piercing & slotting

Please note that we currently do not offer tools for tube bending.
Automation:  Many of our customers do add different types of feeds and automation options, but this is subject to their own preferences, existing equipment and production needs. For these reasons, we no longer offer automation options for our tools.

Reviews

There are no reviews yet.

Be the first to review “Custom Dies”

Your email address will not be published. Required fields are marked *

Custom Dies

Vogel is proud to offer over 80 years of experience in building tooling specific to the tubular part fabrication industry. Custom built tool do have unique issues, both at the quoting phase and during design and build. Below we will attempt to common questions we’ve been asked about our custom dies.

I am interested in a custom die like you show on your site. Can you give me a ballpark price?

If you have a print available, we’ll be happy to quote an exact price. Please fax, email or mail your prints. Please review our request a quote page for details. Without a print, we prefer not to quote even ballpark prices. Tolerances, how a part is dimensioned, materials – all these things can significantly impact cost, or even our ability to offer a tool at all! Rather than quote a ballpark that may not be correct or useful, we’d rather review all application details to insure we can provide tooling and an accurate price.

Can I send you a sample of the my part for a quote?

Again, we regret that quoting off a part is a practice we discourage. Once you’re ready to order and have committed to producing parts, we’d don’t want to see part drawings for the first time and have to advise that the part cannot be produced as drawn. Again, with a fully-dimensioned part print, we’re happy to quote your custom applications.

Can I get samples of parts produced on your custom dies?

All custom dies were built by Vogel to meet a specific customer’s application. In order to preserve confidentiality, we are unable to provide you with another customer’s parts. We of course will extend this same confidentiality to your drawings, custom dies we build and sample parts we make on your dies.

What else should I know about custom die quotes?

Regarding quotes, the more information you can provide, the better. If you have an intended press, please provide the specs. Instead of just quoting a tool, we’ll advise if there’s issues about fitting it to your press or any additional charges to make it suitable. Please review our request a quote page for details.

What else should I know about custom die orders?

Any product Vogel manufactures to order requires a deposit (typically 50% down) and samples of your material. We want your tubing in the form it will be presented to our tool. This typically means cut to length with your normal cutting technique, with bends or any other features in place that will be performed prior to the use of our tooling.

Our lead time is critical, can you accommodate?

Of course we make every effort to accommodate critical lead times. Unfortunately the custom-built nature of an order, means that completion dates cannot be guaranteed. Some very important notes on custom die lead times:

  • Lead times are manufacturing time, not delivered dates. Truck shipments typically add up to 1 week, depending on your location.
  • Lead times are our best estimate at time of quote. When you order, lead times may have increased or decreased. If critical, please inquire again at time of order.
  • Lead times are not from the date you issue your Purchase Order to Vogel, but “begin” when we received all items required to process your order. These items typically include a deposit & sample material. Other items may be needed as well and will be listed on your order acknowledgment.
  • As an example, if we quote a 6 week lead time on March 1st and we don’t receive the required items till June 1st, your lead time to complete the order will be 6 weeks from June 1s. If our workload on June 1st is larger, we may have to increase the 6 week lead time.

I won’t be receiving my tubing till I’m ready to make parts, why do you need it before you begin manufacture?

When we design your tool, we want to be aware of any material issues that could impact our design. Burr from cut off, reduced ID’s from bending, weld seam height and location are just some of the issues we’ll examine before we begin designing your tool. If you are unable to provide material at the time you place your order, please discuss with your salesperson. You can request that the sample material requirement be waived, with the understanding that if rework is required because of material issues, it will be chargeable and extend the lead time to complete the tool.
